Raspberry Pi RP2350A USB Development Board Dual-Architecture Microcontroller

Raspberry Pi RP2350A USB Development Board Dual-Core Dual-Architecture RP2350 Microcontroller Usb Type A

Features:
Uses the RP2350A microcontroller chip designed by Raspberry Pi
Unique dual-core, dual-architecture, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, with a clock running frequency of up to 150MHz
Built-in 520KB SRAM and 2MB on-chip Flash
Uses Type-C interface, keeping up with the trend of the times, no need to worry about whether to insert it forward or backward

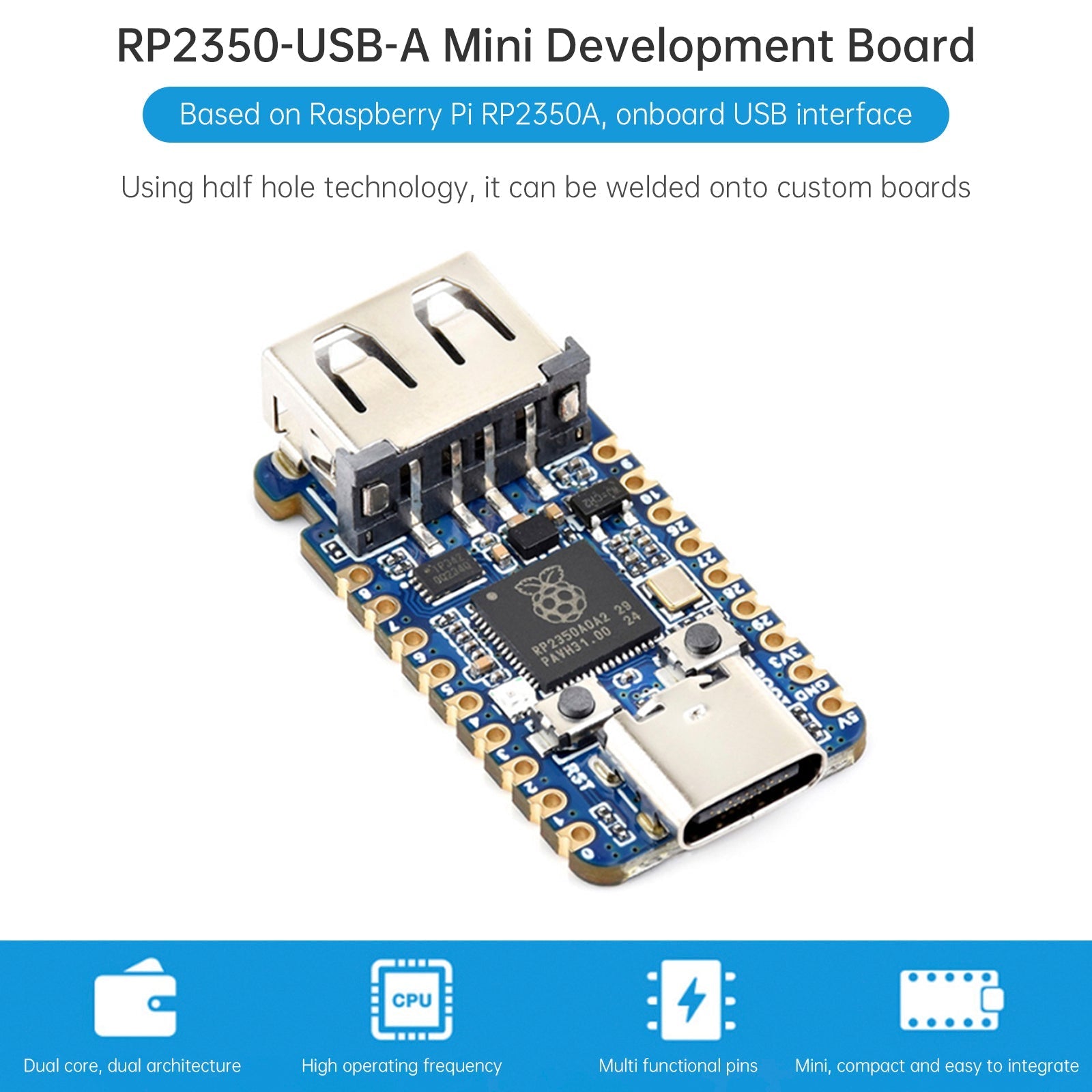

Stamp hole design, can be directly welded and integrated into the user-designed baseboard
USB1.1 host and device support
Onboard 1 USB expansion port, compatible with USB2.0/1.1 transmission
Supports low-power sleep and hibernation modes
Can be identified as a large-capacity storage device through USB for drag-and-drop downloading
RP2350A's 15 GPIO pins are brought out
2 SPI, 2 I2C, 2 UART, 4 12-bit ADC and 14 controllable PWM channels
Accurate on-chip clock and timer
Built-in temperature sensor
On-chip accelerated floating-point library
12 Programmable I/O (PIO) state machines for custom peripheral support

Package Included:
1x RP2350-USB-A
