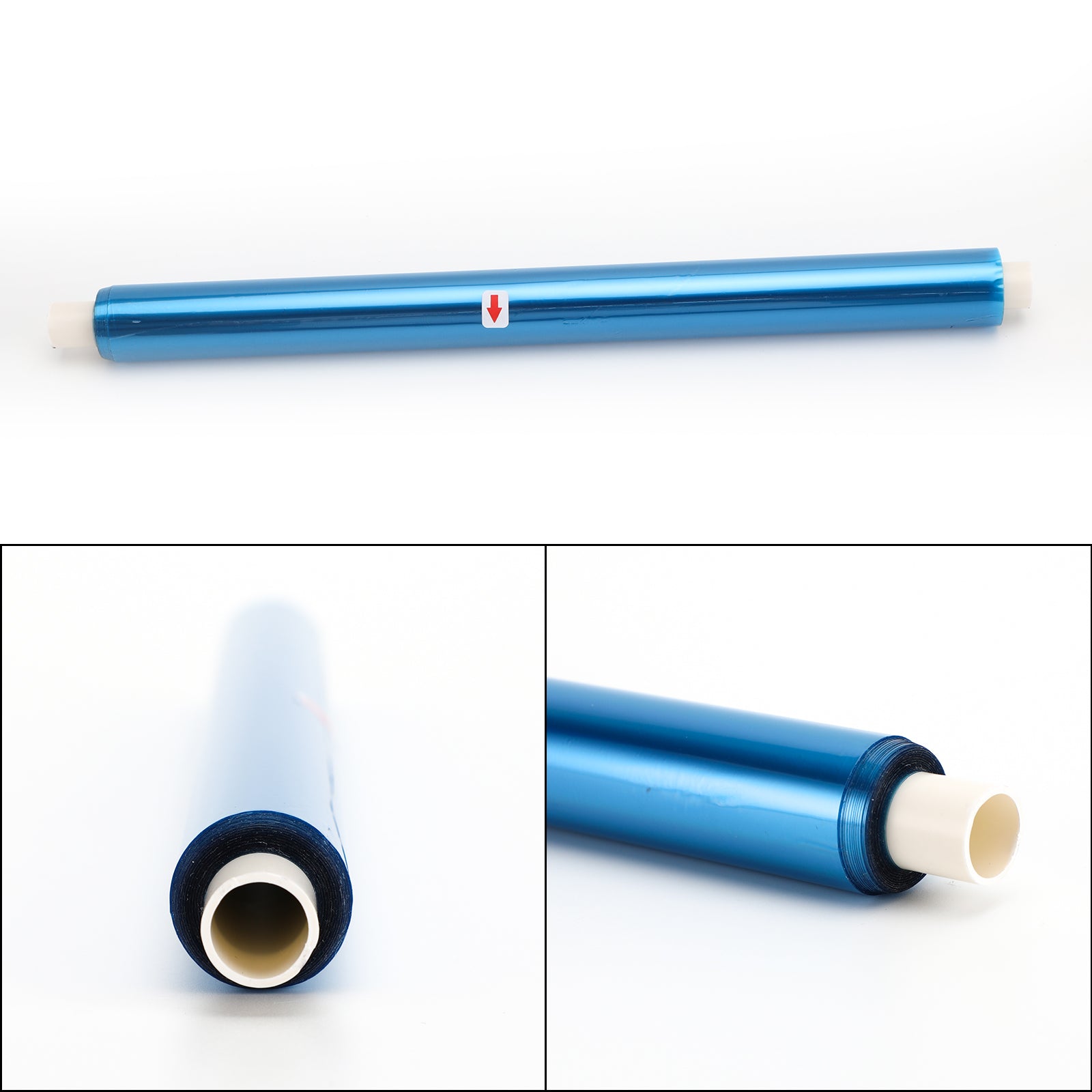

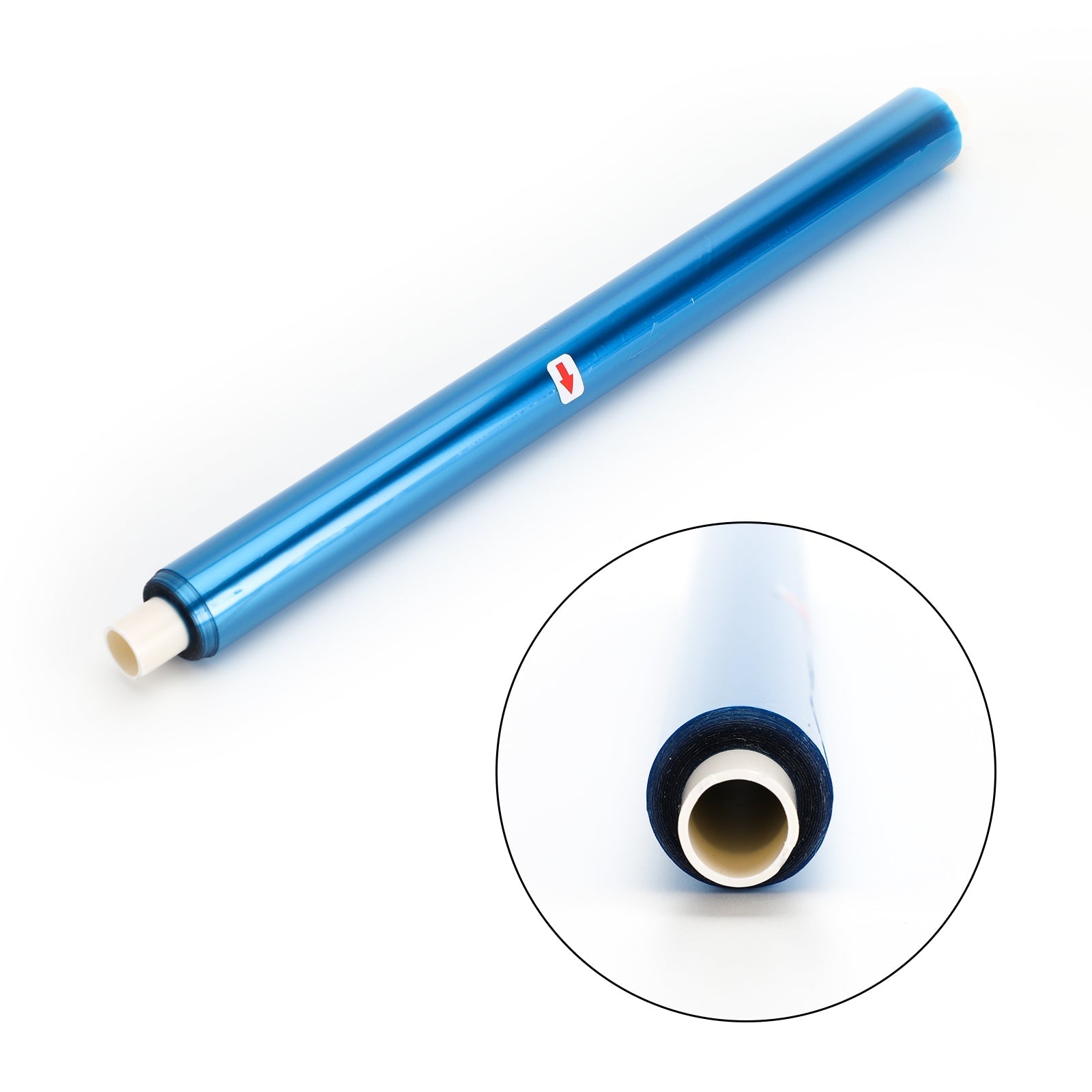

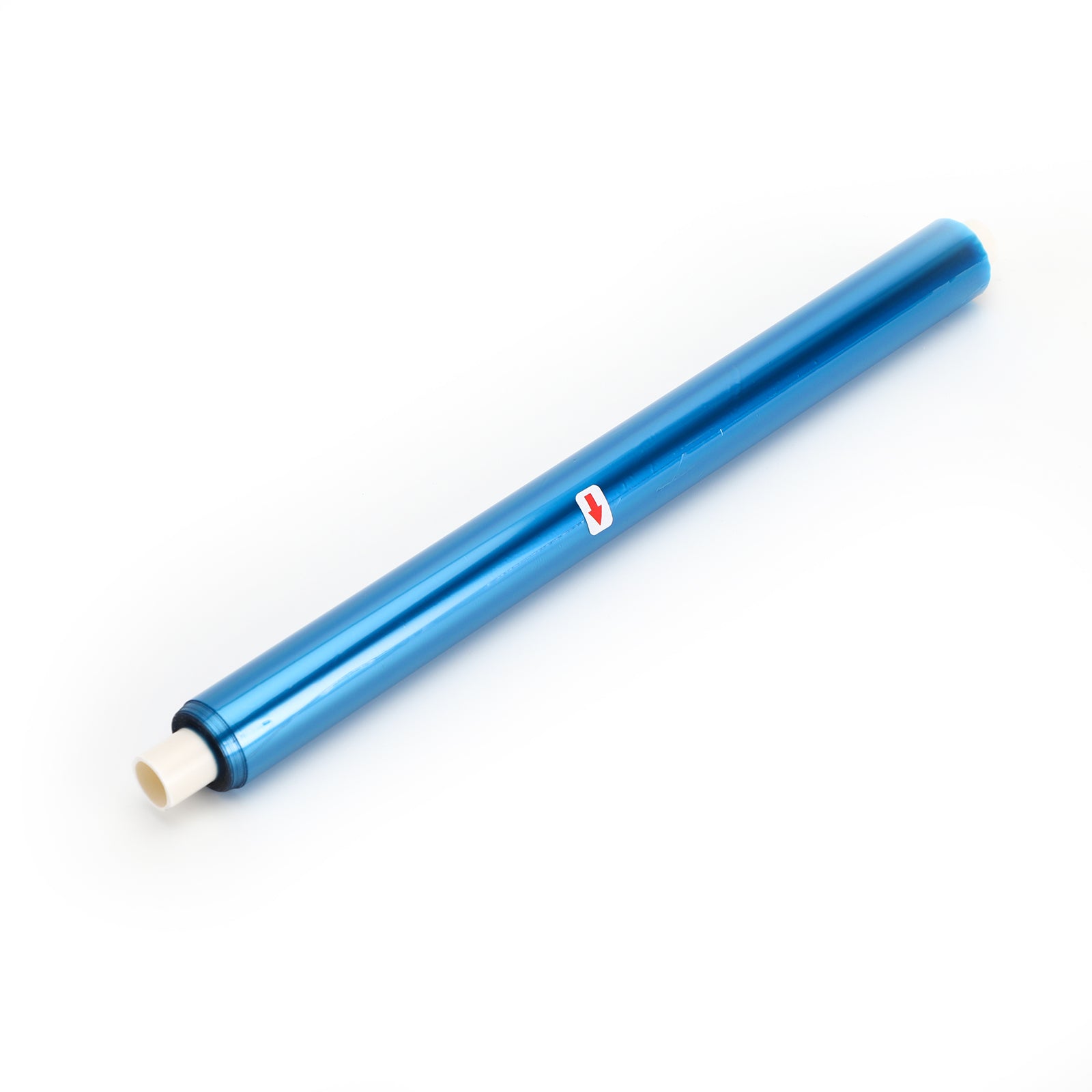

Photosensitive Drying Film Circuit Production Photoresist Sheets 30cm X 5m

Feature:
1: Photographic film, also known as dry film, is used to make PCB board, stick it on top of the PCB, it will become a sensitive circuit board.
2: Suitable for plating, hole covering, and the etching process.
3: Excellent ability to cover holes, high resolution.
4:Excellent adhesion to almost all surfaces. Image clarity after exposure.
Steps of use:
1. Film uncovering, the photographic film is sandwiched between two layers of films.
2. Film pasting, clean and paste flat.
3. Heat slightly to fix with electric iron.
4. Print circuit board film.
5. Exposure
6. Develop
7. Etch
8. Demould

Specifics:
Condition: 100% Brand New
Color: black
Material: Plastic
Dimension: 30cm*500cm / 11.8*197inches
Weight: approx. 150g

Note:
1.Please allow 1-5mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

Package Included:
1x photosensitive dry film/in a pack

Shipping:
Free Shipping
Delivery Time: 2-6 working days

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
